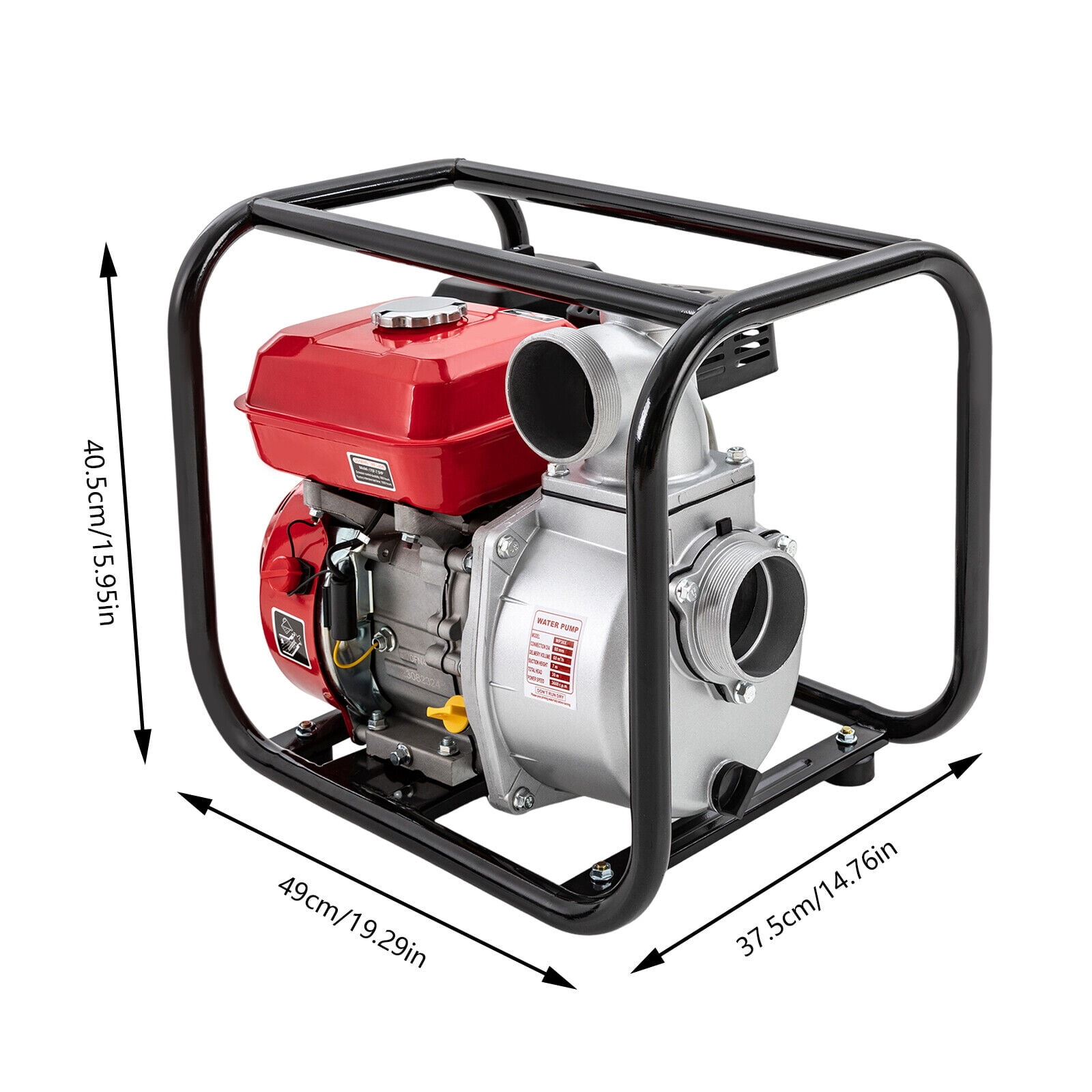

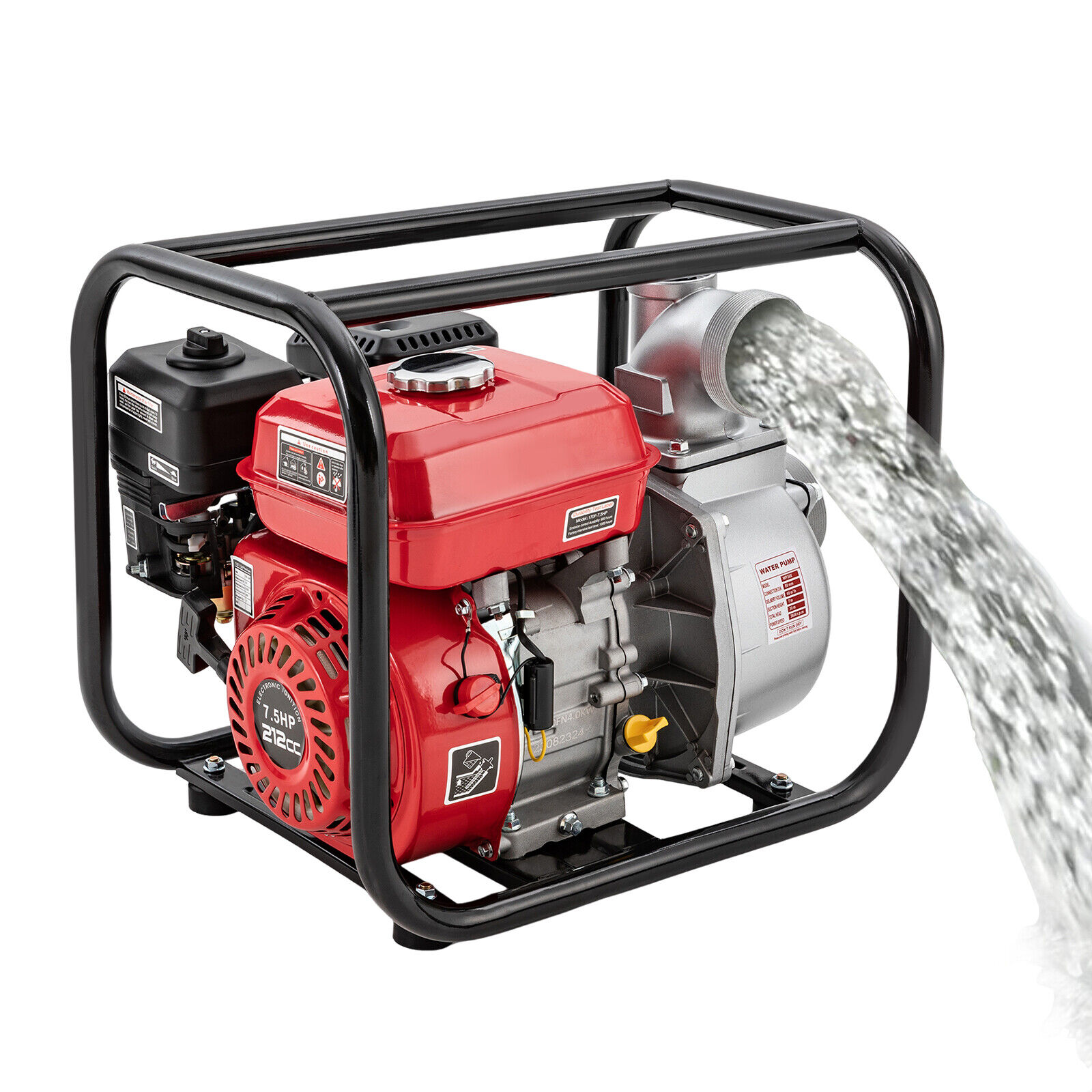

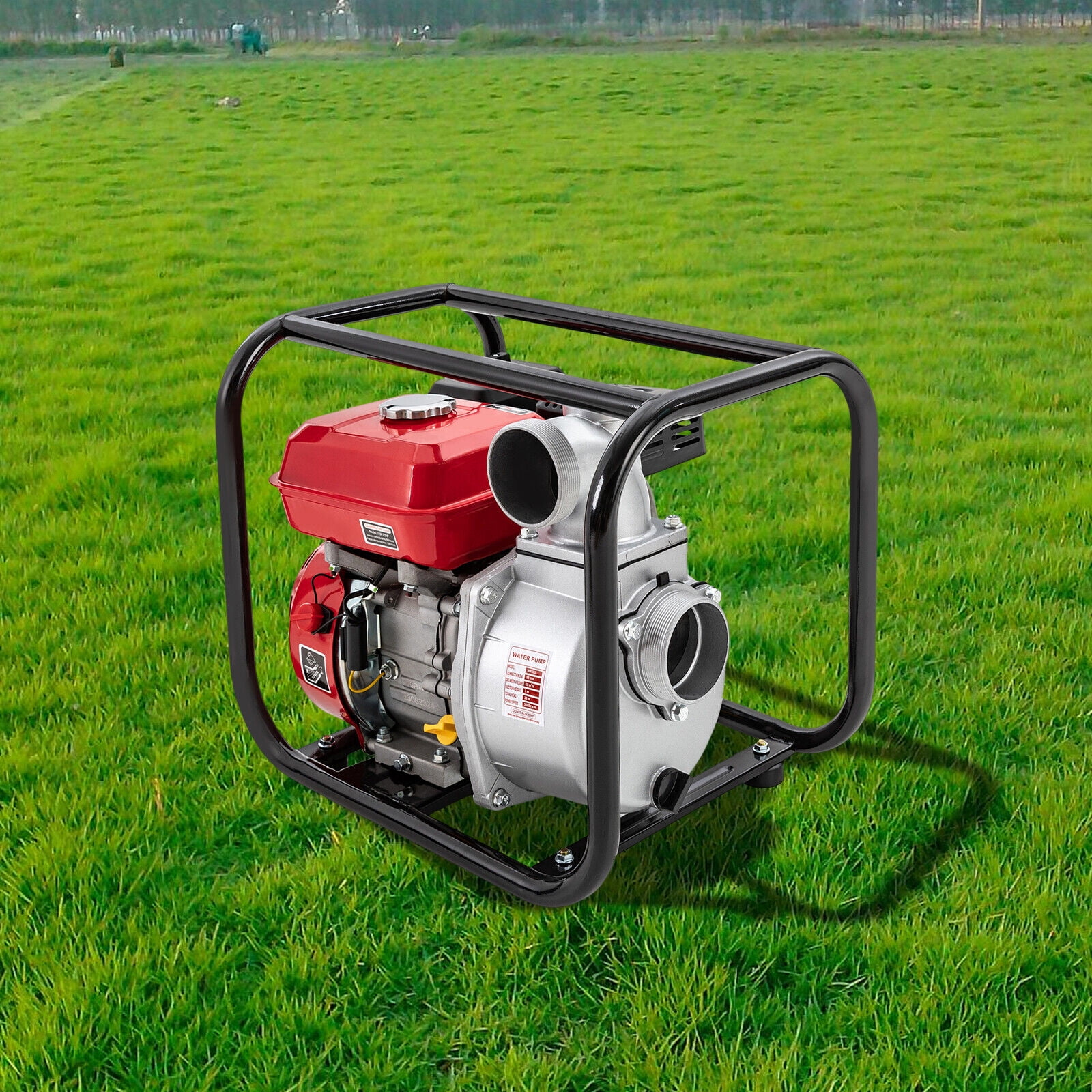

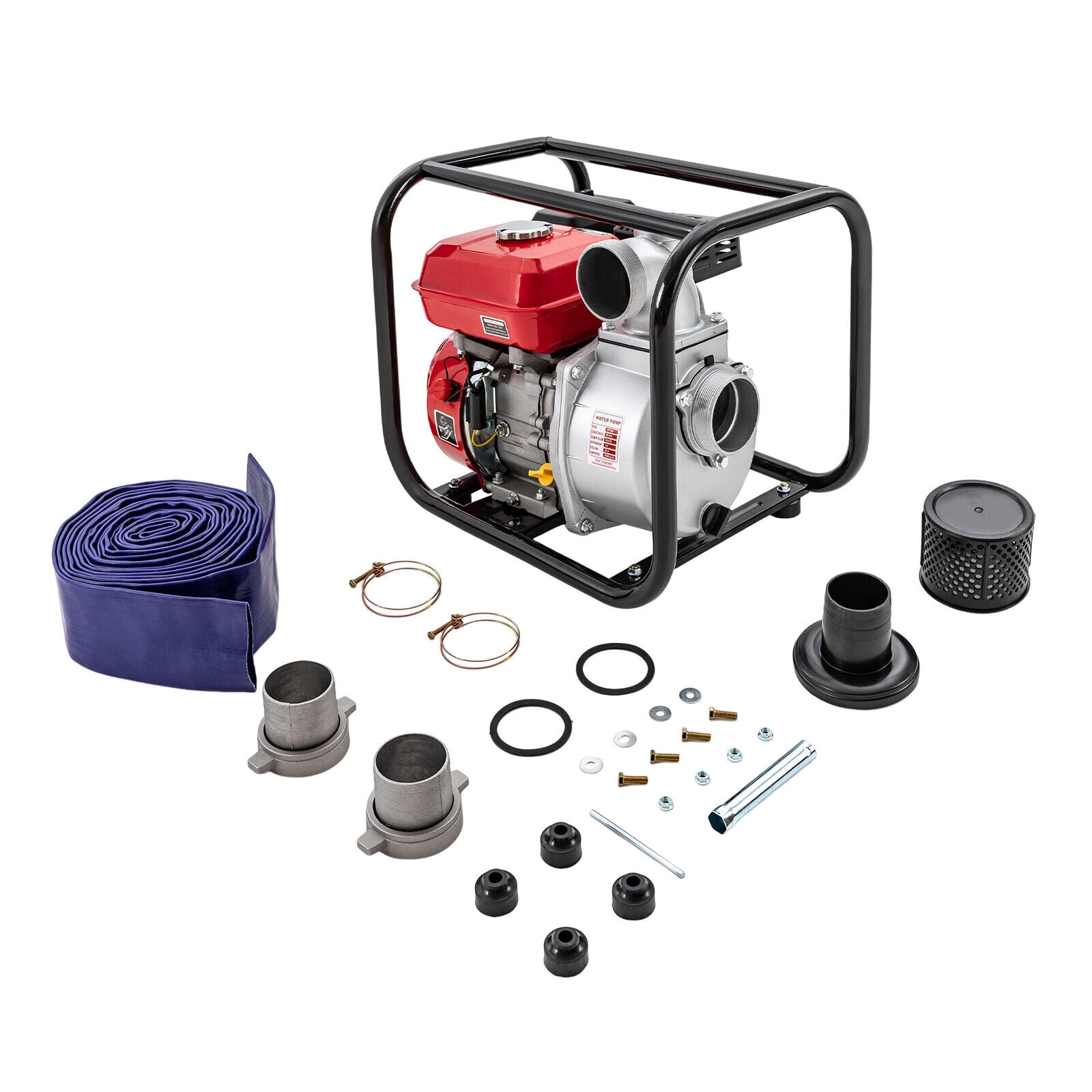

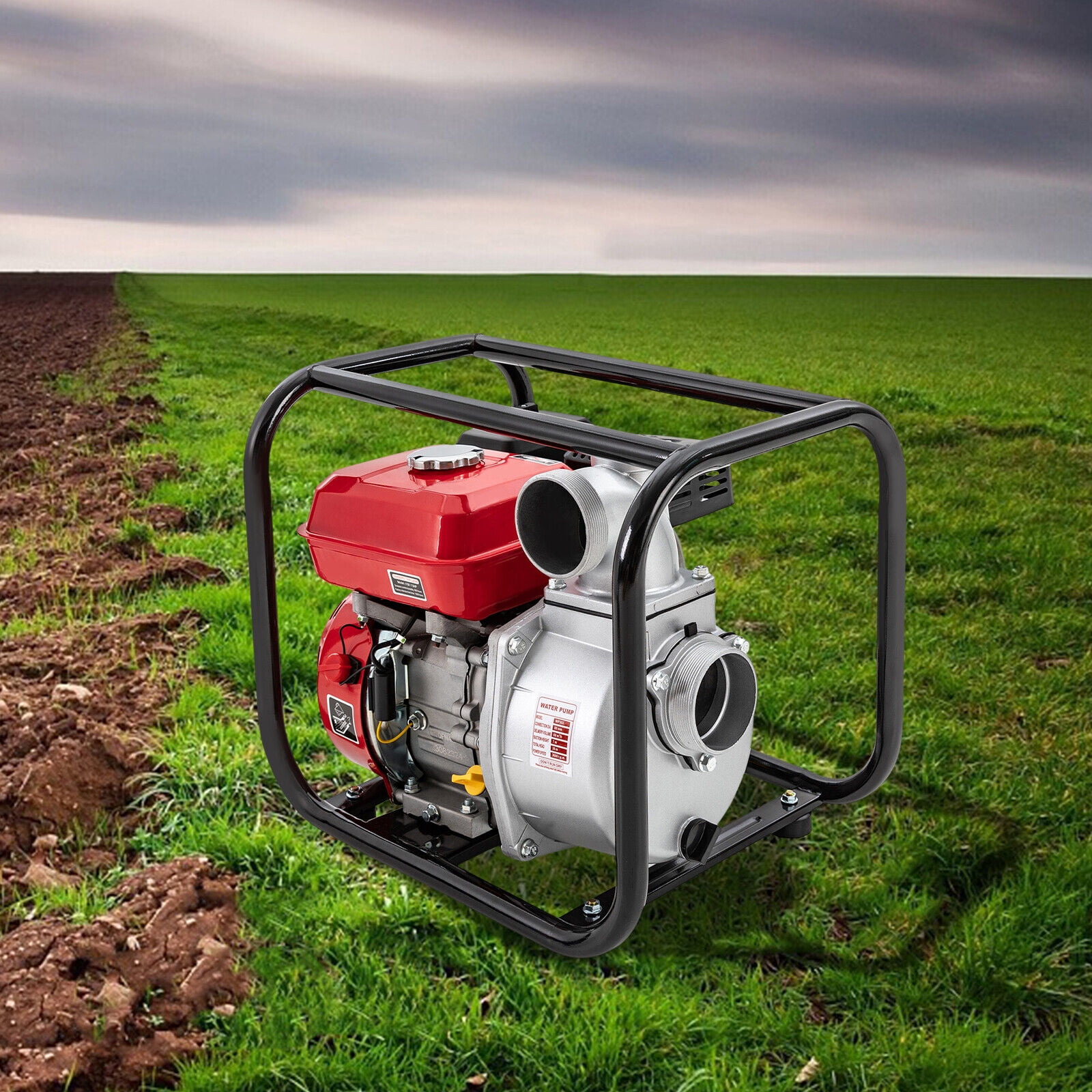

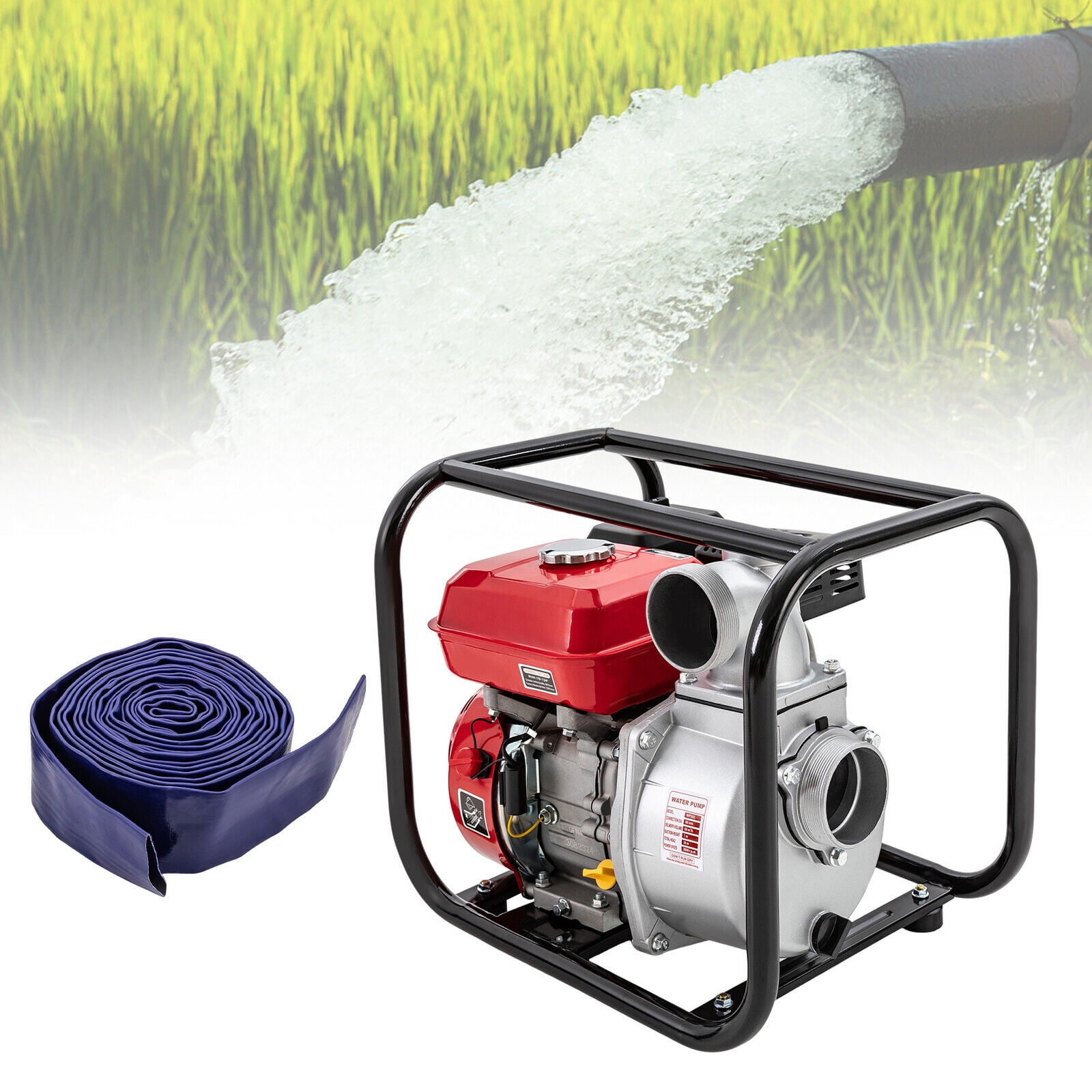

3" Inch 7.5HP Gas Water Pump Gas-Power Garden Water Irrigation Transfer Pump 4-Stroke Gasoline Engine Water Pump 4KW

<p></p> <p><i><b>How to Use</b></i></p> <ol> <li>Place the machine flat and pour in engine oil until there is just oil dripping out. Excessive or insufficient oil will affect operation.</li> <li>Add 92 # gasoline.</li> <li>Fill the pump head with water until there is water overflow at the outlet.</li> <li>Move the red flameout switch up to the ON position.</li> <li>Adjust the throttle switch to the left, adjust the air outlet to the left, and adjust the oil circuit switch to the right.</li> <li>Start the machine by pulling out a small section of the pull rope and then quickly pulling the pull rope.</li> <li>Connect the inlet and outlet pipes.</li> </ol> <p><i><b>Specification</b></i></p> <ul> <li>Model: WP30X, 170F-7.5HP</li> <li>Color: Black, Red</li> <li>Material: Aluminum Alloy, Carbon Steel</li> <li>Processes: Die-casting</li> <li>Assembly Required: Yes</li> <li>Power Source: 92#Gasoline, 5W-40 Engine Oil</li> <li>Max. Power: 4KW</li> <li>Max. Torque: 12/250N.m/r/min</li> <li>Inlet/Outlet Diameter: 80mm/3 in</li> <li>Lift: 30m/98ft</li> <li>Suction Height: 7m/23ft</li> <li>Flow: 60 m³/2119ft ³/h</li> <li>Engine Type: 4-stroke, Single Cylinder, Air-cooled</li> <li>Engine Displacement: 212cc</li> <li>Engine Power: 7.5HP</li> <li>Power Speed: 3600rpm</li> <li>Ignition Method: Contactless Transistor Ignition</li> <li>Start Method: Manual Start</li> <li>Fuel Tank Capacity: 3.6L/0.95 Gal</li> <li>Oil Capacity: 0.6L/0.16 Gal</li> <li>Noise: 66DB (A)</li> <li>Fuel Tank Endurance: 5h</li> <li>Pipe Length: 7.5m/24.61ft</li> <li>Product Size: 49*37.5*40.5cm/19.29*14.76*15.95in</li> <li>Package Size: 50.5*38.5*43cm/20*15*17in</li> <li>Package Included</li> <li>1* 4-Stroke Gasoline Engine Water Pump</li> <li>1* Water Pipe</li> <li>1* English Instruction</li> <li>All Accessories for Assembly</li> </ul> <p><i><b>Notes</b></i></p> <ul> <li>Please read the operating manual completely before use. And pay particular attention to the safety instructions included. Please keep this product away from children.</li> <li>When using it for the first time, it is necessary to change the oil every 5-10 hours, otherwise, impurities in the oil will block the crankshaft.</li> <li>Fill the fuel tank of a four-stroke gasoline engine with 92 # or above gasoline, and add engine oil to the oil tank. Please check the oil level before each use.</li> <li>When a gasoline engine operates continuously, the temperature of the crankcase should not exceed 90°C. If it overheats, it should be stopped for 15-20 minutes before continuing to operate. Please add gasoline only when it is cooled. Please use the correct model of engine oil, genuine factory products, and clean engine oil. Gasoline should also be free of impurities.</li> <li>Gasoline engines are prohibited from stopping at high speeds and should be stopped when the throttle is lowered to the lowest possible level.</li> <li>The air filter element should be regularly inspected and replaced, and the dirty element should be cleaned with soapy water and dried in the shade before use. The cremation plug generally does not need to be replaced. If carbon accumulates, remove it and scrape it off with a knife</li> <li>The machine is ready to be out of use for a long time. Please do not directly turn off the gasoline engine switch, turn off the throttle switch, and consume all the gasoline in the carburetor; If not consumed completely, maintaining oil in the carburetor for a long time can lead to oxidation of the carburetor.</li> <li>Even if using a fan or opening doors and windows for ventilation, please do not operate this product in your home, garage, basement, crawling space, shed, or other partially enclosed spaces.</li> <li>Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.</li> </ul> <p>&nbsp;</p>
